Cat6 Data Cabling Delivers Greater Performance

The Telecommunications Industry Association and the International Organization for Standards are solely responsible for figuring out requirements for data cabling. The most recent version to the 568-B regular covers Cat6. The revision covers enhancement in data transmission rates and rate reductions in factors that degrade performance. Earlier kinds may be less expensive, but working with Category 6 or Augmented Category 6 cabling in your current phone and data systems will keep your cable plant used longer.

Metrics Used in assessment Cat6 Data Cabling

The performance metric for cat6 that we all know about is that it truly is capable of supporting 10GB Ethernet over four sets of copper cabling. The Category 6 standard specifies cable that is qualified for handling transmissions at 250 Megahertz. Nonetheless, this is at a loss in maximum accessible length when using cat6 in 10GB Ethernet systems, 55 metres instead of 100. Making use of Augmented Category 6, which can be rated up to 500Mhz, allows measures of up to 100 metres at the 10GB Ethernet rate. Effectiveness degrading metrics such as the different forms of crosstalk, delay, and attenuation are lessened, allowing the increase in speed and credibility the standard delivers.

The Difference Methods of Test

The two main approaches to test a given cable are to check that they are properly accomplished on both ends, which is termed wiremapping, and testing the installed cat6 data cabling to the effectiveness metrics as set forth in the regular. The average home user is probably only going to need to recognize that it is terminated properly at both ends to ensure that their home network works appropriately. The small business owner, meanwhile, is going to rely more on the structured cabling system they own, thereby is going to want to ensure that cable plant meets basic requirements. This will likely come in the form associated with the installer perform testing into it to make sure the cable fulfills those standards, or having the supplier certify the plant, which entails the similar testing, but much more rigid documentation requirements, with each cable evaluated, with the results printed along with the physical label on the cable at both ends as well as the locations they serve.

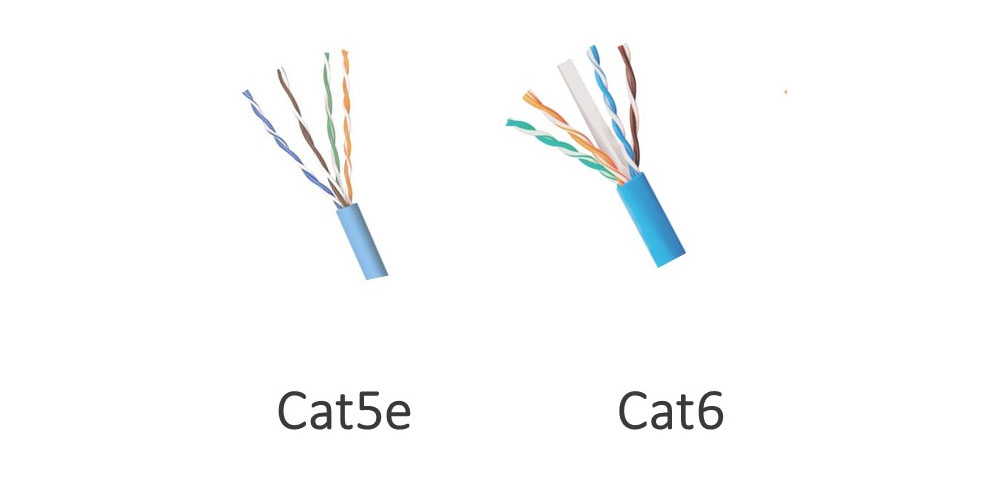

cat5e-cat6

The Drawbacks of Cat6 vs Cat5e

Category 6 and Augmented Category 6 cabling is thick than cat5e cabling, due to the greater thickness of the inner and exterior insulation that helps produce the reductions in the various forms of crosstalk and attenuation that degraded efficiency at higher transmission speeds with cat5e cabling. Due to this fact increase in thickness of the cable, less cat6 data cabling can fit in the same space as with cat5e cable. This improved thickness and the higher rates of speed required limit the number of cables per package because of allowable crush aspects in cable supports. In obtain to take full advantage of the 10GB Ethernet capacity of category 6 cable, you are going to most likely need new network equipment, including routers and network adapters that are classified as capable of operating at the 10GB speeds. Appropriately terminating connectors to meet the cat6 requirement is quite a bit extra difficult than performing terminations for previous cable types.
